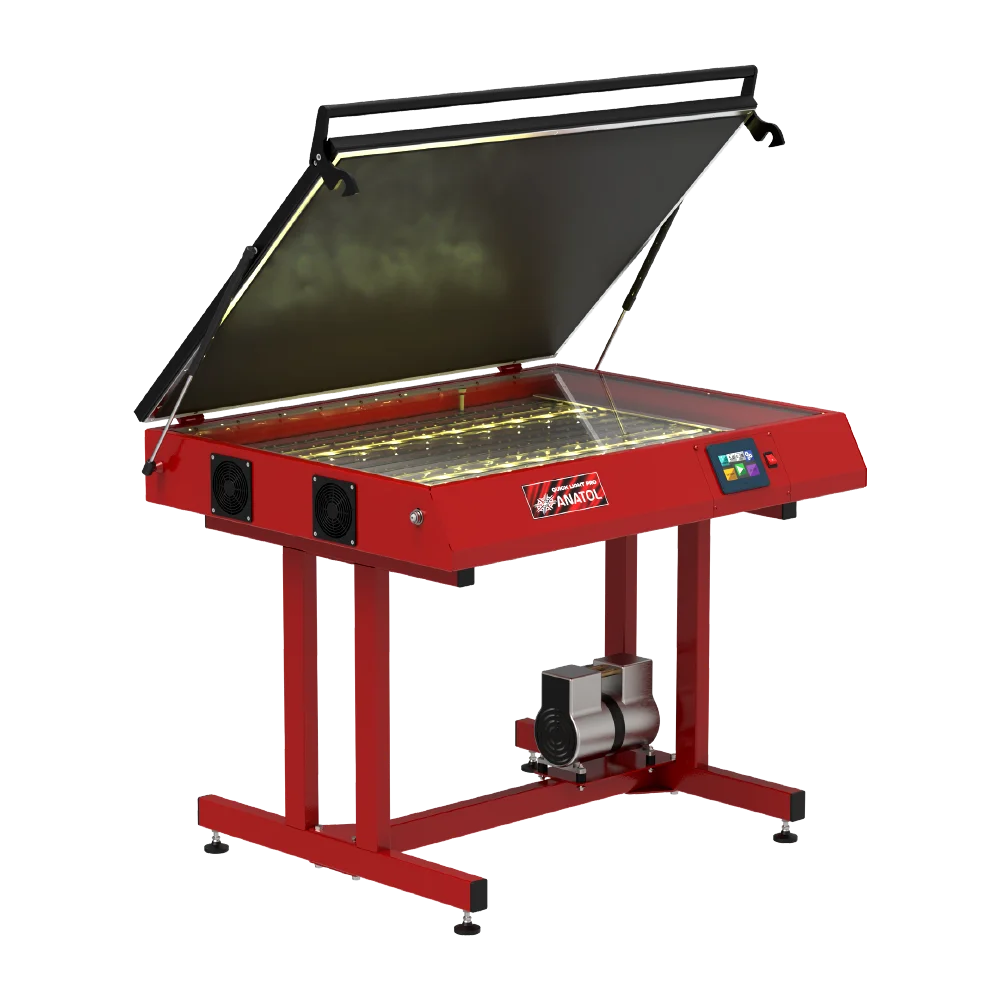

Models available for screens up to 36″ x 48″. Simple one-touch operation and user-friendly 4.3” touchscreen controls, with no startup or cool down time required. Save and load programs for different types of mesh, emulsion, etc.
Convenient Combinations
- Pair the Quick Light Pro exposure unit with a screen rack or drying cabinet (sold separately) for maximum convenience.
- Screen rack and screen drying cabinet feature heavy-duty casters for mobility.
- Keep your screen preparation area neat and organized.
Compatible with the Anatol ARME pre-registration system.
Design and Construction
- ¼’’ (6.4mm) thick optically clear plate glass
- Controlled ventilation within the light cabinet provides filtered ambient air
- Fully-enclosed, heavy duty steel cabinet built for durability, longevity and operational comfort
- Gas springs for easy opening and closing of the frame with blanket
- Removable covers provide easy access to internal components for cleaning and replacement
Light Source
- UV LEDs will dramatically reduce exposure time through optimized light saturation
- High-efficiency UV LED system reduces power consumption to half of metal halide unit requirements
- Yellow LED inspection strips
- LEDs designed to last 50,000 hours or more
Blanket and Vacuum
- Blanket made of flexible material to provide optimal vacuum seal around screen frame, film positive and glass for high resolution exposure
- Oil-free vacuum pump
Control Interface
- Digital control with 4.3” touch screen
- Save up to 8 preset settings
- Manual and automatic mode
- Independent vacuum draw delay and exposure time thresholds
- Automatically turn on yellow UV-safe light when the cover is opened
|
MODEL |
VACUUM PUMP |
MAX SCREEN FRAME SIZE | MAX SIZE OF ARME SYSTEM | OUTER DIMENSIONS WxDxH (*HEIGHT WITH OPEN FRAME) |
ELECTRICAL |
|
QUICK LIGHT 23×31 |
140 L/MIN | 23”x 31” (58cm x 79cm) |
21”x 28” (53cm x 71cm) |
48.1”x36.3”x37.4” (61.1”*) 122cm x 92cm x 95cm (155cm*) |
1 Phase, 110V, 6A |
|
QUICK LIGHT |
140 L/MIN | 26”x 36” (66cm x 91cm) |
26”x 36” (66cm x 91cm) |
54.5”x40.5”x37.4” (64.3”*) 138.5cm x 103cm x 95cm (163cm*) |
1 Phase, 110V, 9A |
| QUICK LIGHT 36×48 |
140 L/MIN X2 |
36”x 48” (91.5cm x 122cm) |
30”x 45” (76cm x 114cm) Double 21”x 28” (2 x 53cm x 71cm) |
62.9”x46.2”x37.4” (68.1”*) 156cm x 117cm x 95cm (173cm*) |
1 Phase, 110V, 15A |
